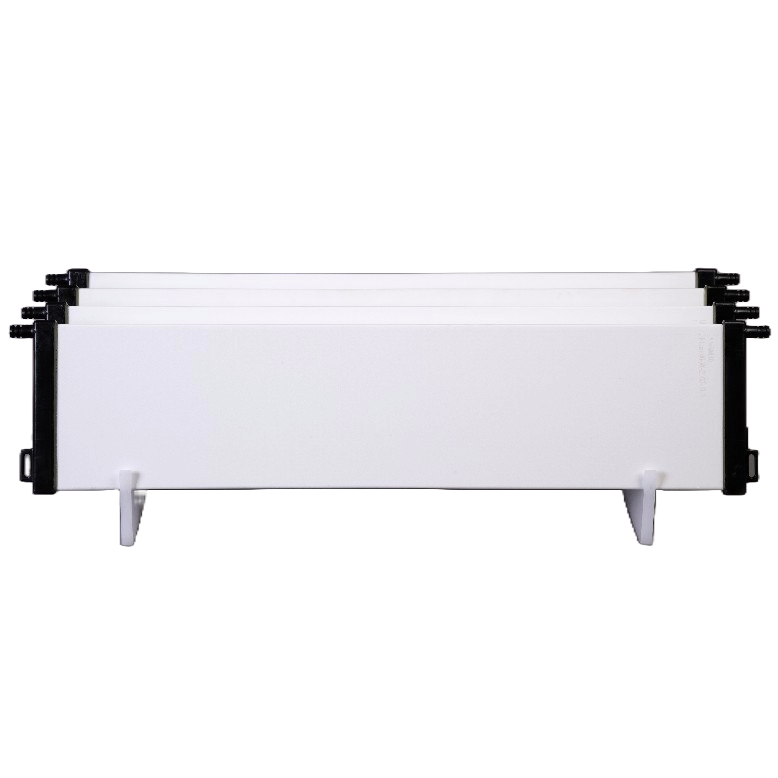

Ceramic Flat Sheet Module WCF-616A-M0.1 Series
Revolutionary stackable design with 9m² filtration area per layer. Tool-free assembly meets industrial-grade performance with 15-20 year service life.
Next-Generation Modular Filtration
The WCF-616A-M0.1 represents a breakthrough in ceramic membrane module design, offering unprecedented flexibility and performance in a compact, stackable configuration.
Scalable Architecture
Stack 1-15 layers to achieve 9-135m² filtration area. Each layer operates independently with uniform flow distribution.
Tool-Free Maintenance
Revolutionary bolt-free design enables rapid assembly and disassembly. Replace individual membranes in minutes without special tools.
15-20 Year Service Life
Al₂O₃ ceramic construction ensures exceptional durability. Withstands harsh chemicals, high temperatures, and aggressive cleaning cycles.
Engineering Excellence
616x700x29mm
Compact dimensions per layer with maximum surface area utilization
100nm Pore Size
Ultrafiltration capability with consistent pore distribution
pH 2-12
Operates in extreme pH conditions without degradation
3 Bar Max
Low-pressure operation reduces energy costs
Technical Specifications
Module Configuration
Membrane Properties
Operating Parameters
Flow Configuration
- • Cross-flow operation
- • Dead-end filtration option
- • Backwash capable
Cleaning Methods
- • Chemical cleaning (CIP)
- • Air scouring
- • Ultrasonic cleaning compatible
Applications
- • Wastewater treatment
- • Process water filtration
- • Ozone-resistant applications
Industry Applications
Industrial Wastewater
High-strength organic wastewater treatment with superior fouling resistance and chemical compatibility.
Chemical Processing
Solvent recovery, product concentration, and process water treatment in harsh chemical environments.
Water Reuse
Advanced treatment for water recycling and reuse applications with consistent quality output.
Aquaculture
RAS filtration systems with ozone resistance for pathogen control and water clarity.
Pharmaceutical
API recovery, solvent processing, and waste treatment meeting stringent regulatory requirements.
MBR Systems
Membrane bioreactor applications with superior flux rates and fouling control.
Ready to Scale Your Filtration System?
Experience the flexibility of modular ceramic filtration. Our engineering team will help design the optimal configuration for your specific requirements.
